Product Description

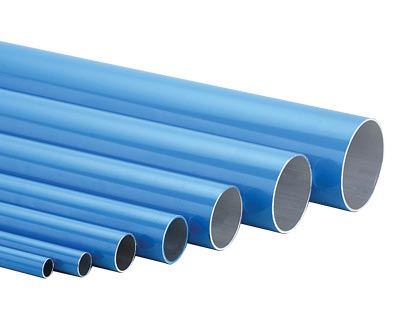

Aluminium Air Pipe – High performance aluminium piping system that is especially designed for air, indicated with blue colour, as per Australian standards. The non–corrosive extruded aluminium provides structural strength and delivers contaminate-free fluid in a leak free piping system.
The smooth bore of Infinity piping prevents high pressure losses and allows for higher flow rates and performance than that of other systems.

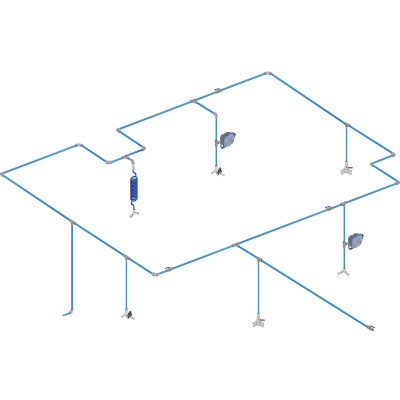

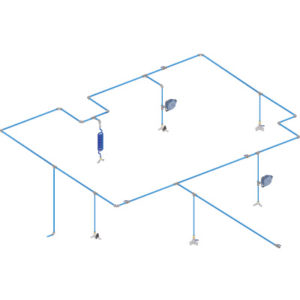

High Flow Range – Specifically designed for long ring main installations in large factories, the high flow series feature a cast aluminium construction, offering the same benefits as the smaller range: easy push-fit installation, minimal leakage and laminar fluid flow. Available in 63mm-168mm diameters.
| Code | Description | Max Flow Rate (cfm) (25m, @7bar) |
| 900006 20 | Aluminium Pipe 20mm x 6m | 62 |
| 900006 25 | Aluminium Pipe 25mm x 6m | 124 |
| 900006 32 | Aluminium Pipe 32mm x 6m | 247 |
| 900006 40 | Aluminium Pipe 40mm x 6m | 424 |
| 900006 50 | Aluminium Pipe 50mm x 6m | 742 |
| 900006 63 | Aluminium Pipe 63mm x 6m | 1554 |
| 900006 80 | Aluminium Pipe 80mm X 6m | 2931 |
| 900006 110 | Aluminium Pipe 110mm X 6m | 3531 |
| 900006 168 | Aluminium Pipe 168mm X 6m |
